• Auto On/Off Reflector Halogen Daytime Running Lights Preference Setting Headlamps
• Black Door Handles
• Black Front Bumper w/Black Rub Strip/Fascia Accent
• Black Grille
• Black Side Windows Trim and Black Front Windshield Trim
• Front Windshield -inc: Sun Visor Strip
• Fully Galvanized Steel Panels
• Light Tinted Glass
• Tires: LT225/75R16E BSW A/S -inc: Hankook DynaPro HT
• Variable Intermittent Wipers
• Wheels: 16" x 6" White Painted Steel

• 2 Door
• 2 USB ports
• 4-wheel ABS Brakes
• ABS and Driveline Traction Control
• AM/FM Radio
• Audio system memory card slot
• Black bumpers
• Black grille
• Bucket front seats
• Clock : Digital
• Coil front spring
• Cupholders: Front
• Daytime running lights
• Diameter of tires: 16.0"
• Door pockets: Driver and passenger
• Door reinforcement: Side-impact door beam
• Driver airbag
• Dual Rear Wheels
• Dusk sensing headlights
• Fixed antenna
• Front Head Room: 42.0"
• Front Hip Room: 65.6"
• Front Independent Suspension
• Front Leg Room: 42.1"
• Front Shoulder Room: 68.1"
• Front Stabilizer Bar : Bar
• Front Ventilated disc brakes
• Front and rear suspension stabilizer bars
• Fuel Capacity: 55.0 gal.
• Fuel Type: Regular unleaded
• Gross vehicle weight: 14,500 lbs.
• Halogen Reflector Headlights
• Independent front suspension classification
• Instrumentation: Low fuel level
• Leaf rear spring
• Leaf rear suspension
• Manual front air conditioning
• Mobile hotspot internet access
• Other front suspension
• Overall Length: 261.1"
• Overall Width: 79.4"
• Overall height: 80.0"
• Painted steel rims
• Passenger Airbag
• Power steering
• Privacy glass: Light
• Rear Stabilizer Bar : Bar
• Rigid axle rear suspension
• Seatbelt pretensioners: Front
• Stability control
• Suspension class: Regular
• Tachometer
• Tilt and telescopic steering wheel
• Tires: Load Rating: E
• Tires: Prefix: LT
• Tires: Profile: 75
• Tires: Speed Rating: S
• Tires: Width: 225 mm
• Total Number of Speakers: 2
• Two 12V DC power outlets
• Type of tires: AS
• Urethane shift knob trim
• Urethane steering wheel trim
• Variable intermittent front wipers
• Vehicle Emissions: Federal
• Vinyl floor covering
• Vinyl seat upholstery
• Wheel Diameter: 16
• Wheel Width: 6
• Wireless phone connectivity

• 2 12V DC Power Outlets
• 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
• 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
• Analog Appearance
• Driver And Front Passenger Armrests
• Driver And Passenger Door Bins
• Dual High Back Buckets
• Fixed Front Head Restraints
• Front Cupholder
• Front Only Vinyl/Rubber Floor Covering
• Front Vinyl Headliner
• Glove Box
• Manual 1st Row Windows
• Manual Air Conditioning
• Manual Tilt/Telescoping Steering Column
• Mobile Hotspot Internet Access
• Partial Floor Console w/Storage and 2 12V DC Power Outlets
• Tracker System
• Urethane Gear Shifter Material
• Vinyl Bucket Seats

• 4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs and Hill Hold Control
• 4.56 Axle Ratio
• 50 State Emission System
• 55 Gal. Fuel Tank
• 78-Amp/Hr 750CCA Maintenance-Free Battery
• 8980# Maximum Payload
• Dual Rear Wheels
• Front And Rear Anti-Roll Bars
• Front Suspension w/Coil Springs
• GVWR: 14,500 lb Payload Package
• HD 210 Amp Alternator
• HD Gas-Pressurized Shock Absorbers
• Hydraulic Power-Assist Steering
• Rear-Wheel Drive
• Single Stainless Steel Exhaust
• Solid Axle Rear Suspension w/Leaf Springs

• ABS And Driveline Traction Control
• Dual Stage Driver And Passenger Front Airbags
• Electronic Stability Control (ESC) Electronic Stability Control (ESC)
• Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners
• Side Impact Beams

ENGINE: 7.3L V8 PREMIUM-RATED

• (STD)

• WiFi Hotspot
• Auxiliary Audio Input
• Bluetooth® Connection

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 210
• Weight Information
• Base Curb Weight (lbs): 5512
• Gross Axle Wt Rating - Front (lbs): 5000
• Gross Axle Wt Rating - Rear (lbs): 9600
• Curb Weight - Front (lbs): 3078
• Curb Weight - Rear (lbs): 2434
• Gross Vehicle Weight Rating Cap (lbs): 14500
• Gross Combined Wt Rating (lbs): 22000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 750
• Maximum Trailering Capacity (lbs): 7500
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 5000
• Spring Capacity - Rear (lbs): 9600
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 5000
• Axle Capacity - Rear (lbs): 9600
• Axle Ratio (:1) - Front: 4.56
• Axle Ratio (:1) - Rear: 4.56
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.6
• Rear Brake Rotor Diam x Thickness (in): 13.6
• Tires
• Front Tire Order Code: T68
• Rear Tire Order Code: T68
• Front Tire Size: LT225/75SR16
• Rear Tire Size: LT225/75SR16
• Front Tire Capacity (lbs): 5000
• Rear Tire Capacity (lbs): 9880
• Revolutions/Mile @ 45 mph - Front: 709
• Revolutions/Mile @ 45 mph - Rear: 709
• Wheels
• Front Wheel Size (in): 16 X 6
• Rear Wheel Size (in): 16 X 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 54.8
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 55
• Exterior Dimensions
• Wheelbase (in): 158
• Length, Overall (in): 261.1
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 80
• Overhang, Rear w/o bumper (in): 68.5
• Cab to Axle (in): 100
• Cab to End of Frame (in): 168.5
• Ground to Top of Load Floor (in): 26
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 42
• Front Leg Room (in): 42.1
• Front Shoulder Room (in): 68.1
• Front Hip Room (in): 65.6
• Summary

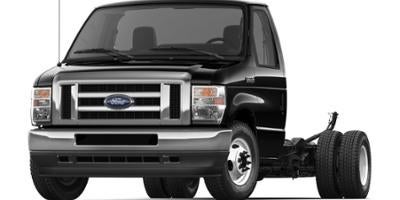

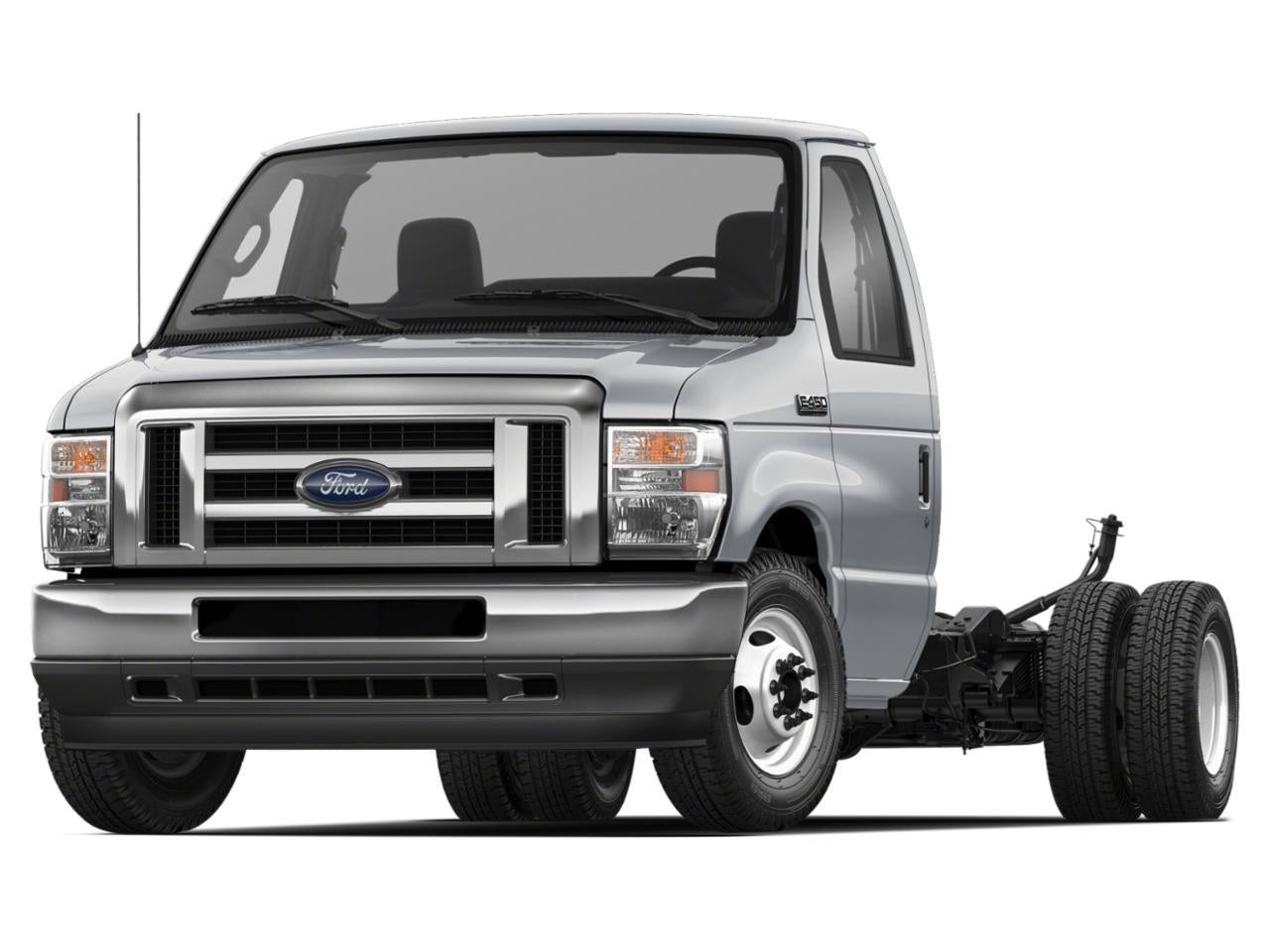

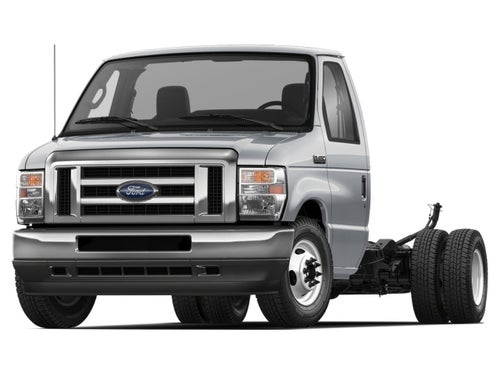

• Vehicle Name: Ford E-Series Cutaway
• Body Style: Chassis
• Body Code: H
