2020 Chevrolet Low Cab Forward

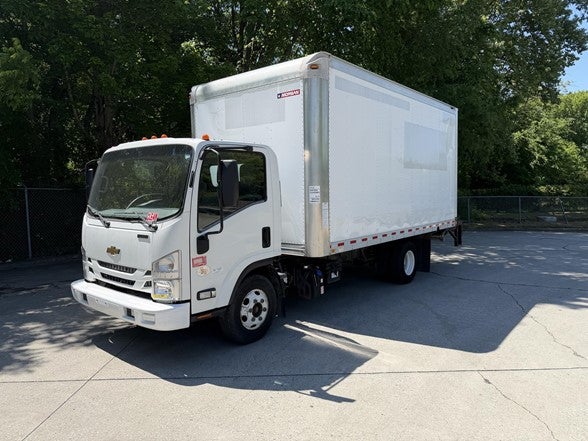

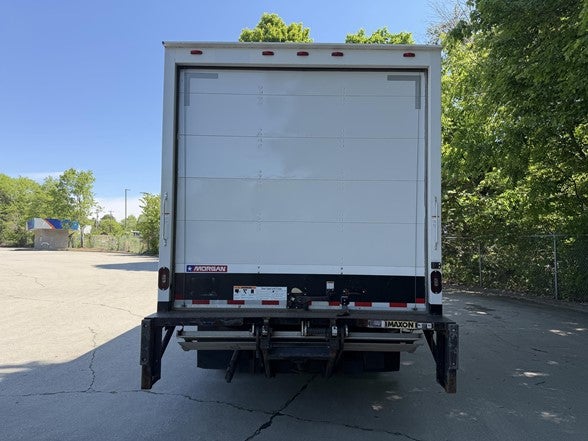

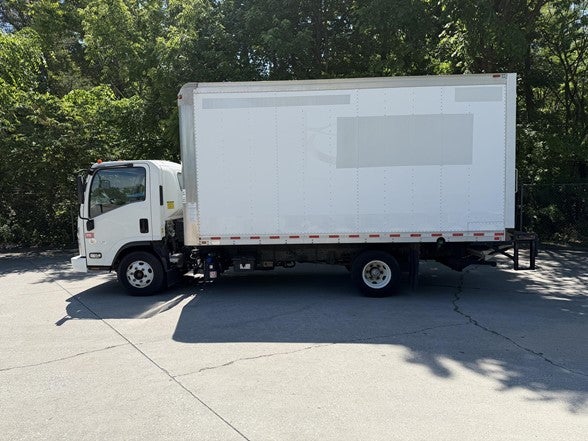

2020 Chevrolet Low Cab Forward 4500HD
In-stock
-
Call for Pricing & Availability SALE PRICE
Visit our Store
- Piedmont Truck Center, Inc.
-
412 South Regional Road
Greensboro, NC 27409
- Sales: 336-860-7780
- Service: 336-860-7780
Vehicle Information
VIN:
JALCDW161L7010005
Stock #:
3903A
Model Code:
DW1
-
Body Style Regular Cab Chassis Cab -
Mileage 100
-
Engine 0 Cyl -
Fuel Type Diesel
Highlighted Features
Feature availability subject to final vehicle configuration. Please reference window sticker for more info.
- Bluetooth®
- Turbo Charged Engine
- Cruise Control
All Features
- Rear axle, 4.56 ratio
- Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
- Drivetrain, rear-wheel drive
- Battery, dual 750 cold-cranking amps, 12 volt, maintenance free
- Alternator, 140 amps
- Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
- Incomplete vehicle certification
- Wheelbase, 150" (381.0 cm)
- GVWR, 14,500 lbs. (6577 kg)
- Front suspension, 6,830 lbs. (3098 kg) tapered leaf, semi-elliptical steel alloy. Includes shock absorbers and stabilizer bar.
- Rear Suspension, 12,900 lbs. (5851 kg), multi-leaf, semi-elliptical steel alloy. Includes shock absorbers
- Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering. ratio 18.8-20.9:1
- Rear axle, 11,020 lbs. (4998 kg) R050, full-floating single-speed with oil lubricated rear wheel-bearings
- Vehicle Application Truck
- Exhaust brake
- Fuel tank, 30 Gallon, (113L), rectangular fuel tank. mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill
- Exhaust, single horizontal outlet
- Tires, front, LT215/85R16 E 115/112 L BW ALS VAR1
- Tires, rear, LT215/85R16 E 115/112 L BW ALS VAR1
- Wheels, 16" x 6, K. steel
- Assist steps
- Glass, tinted
- Mirror, outside left hand and right hand dual cab mounted exterior with integral convex mirror
- Windshield wiper, pulse, wet arm

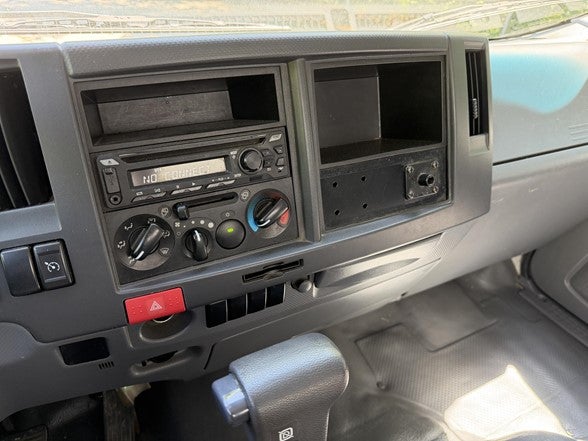

- Audio System, AM/FM stereo with CD player, auxiliary jack, USB port and Bluetooth®
- Audio system feature, 2 speakers

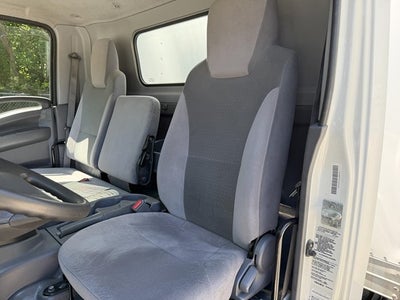

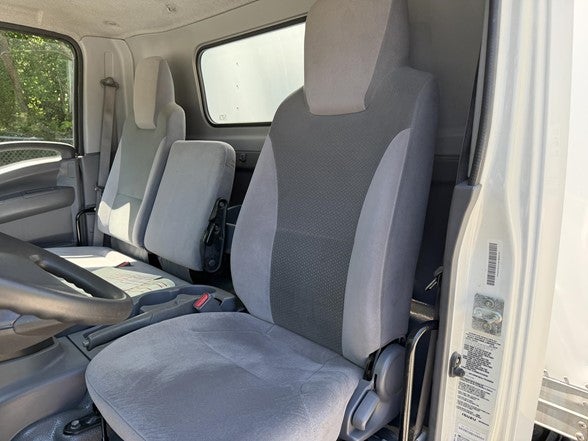

- Seat, front high back bucket driver and passenger tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat
- Seat trim, Cloth
- Cup holders
- Floor mats
- Steering wheel, urethane
- Steering wheel, tilt and telescopic
- Air conditioning, single-zone manual, integral in-dash mounted
- Windows, power
- Door locks, power
- Cruise control, electronic, automatic
- Windshield washer bottle access on passenger side dash when passenger-side door is open
- Storage, door pockets
- Lighting, interior dome
- Storage, seatback pockets
- Daytime Running Lamps
ENGINE, DIESEL 5.2L 4 CYLINDER
- 215 hp [160.3 kW] @2500 rpm
- 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve
- four cycle
- chain-driven dual overhead camshaft valve train
- a cast iron cylinder block
- and a cast aluminum cylinder head. Turbocharged
- inter-cooled
- water cooled EGR
- direct injection
- electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure
- high coolant temperature
- and a protection system that will reduce fueling if excessive coolant temperature is detected (STD)
- Number of Passenger Doors: 2
- Front Frame Rating: - TBD -
- Cold Cranking Amps @ 0° F (Primary): 750
- Maximum Alternator Capacity (amps): 140
- Maximum Alternator Watts: - TBD -
- Total Cooling System Capacity (qts): 20.8
- Gross Axle Wt Rating - Front (lbs): 5360
- Gross Axle Wt Rating - Rear (lbs): 9880
- Curb Weight - Front (lbs): 4061
- Curb Weight - Rear (lbs): 2034
- Gross Vehicle Weight Rating Cap (lbs): 14500
- Gross Combined Wt Rating (lbs): 20500
- Suspension Type - Front: Independent w/Tapered Leaf Springs
- Suspension Type - Rear: Independent w/Multi-Leaf Springs
- Spring Capacity - Front (lbs): 6830
- Spring Capacity - Rear (lbs): 9880
- Axle Type - Front: I-Beam
- Axle Type - Rear: Full-Floating
- Axle Capacity - Front (lbs): 6830
- Axle Capacity - Rear (lbs): 11020
- Axle Ratio (:1) - Rear: 4.555
- Shock Absorber Diameter - Front (mm): 42.0
- Shock Absorber Diameter - Rear (mm): 42.0
- Stabilizer Bar Diameter - Front (in): 1.65
- Brake Type: Pwr
- Brake ABS System: 4-Wheel
- Disc - Front (Yes or ): Yes
- Front Brake Rotor Diam x Thickness (in): 11.5 x - TBD -
- Drum - Rear (Yes or ): Yes
- Rear Drum Diam x Width (in): 12.6 x 3.94
- Front Tire Order Code: 2TA
- Rear Tire Order Code: 3TA
- Front Tire Size: LT215/85R16
- Rear Tire Size: LT215/85R16
- Front Tire Capacity (lbs): 5360
- Rear Tire Capacity (lbs): 9880
- Revolutions/Mile @ 45 mph - Front: 682.9
- Revolutions/Mile @ 45 mph - Rear: 682.9
- Number Of Tires Front: 2
- Number Of Tires Rear: 4
- Front Wheel Size (in): 16 x 6
- Rear Wheel Size (in): 16 x 6
- Front Wheel Offset (mm): 127
- Rear Wheel Offset (mm): 127
- # of Bolt Holes - Front: 6
- # of Bolt Holes - Rear: 6
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Front Bolt Pattern: 6 Hole JIS 8.75"
- Rear Bolt Pattern: 6 Hole JIS 8.75"
- Steering Type: Pwr
- Steering Ratio (:1), On Center: 18.8-20.9
- Steering Ratio (:1), At Lock: 18.8-20.9
- Turning Diameter - Curb to Curb (ft): 42.7
- Turning Diameter - Wall to Wall (ft): 48.9
- Frame Type: Ladder-Type C-Section
- Sect Modulus Rails Only (in³): 7.20
- Frame RBM (N/A): 316800
- Frame Strength (lbs): 44000
- Frame Thickness (in): 8.50 x 2.76 x 0.24
- Fuel Tank Capacity, Approx (gal): 30.0
- Fuel Tank Location: Frame Rail
- Wheelbase (in): 150.00
- Length, Overall w/o rear bumper (in): 241.50
- Width, Max w/o mirrors (in): 81.30
- Height, Overall (in): 90.80
- Overhang, Front (in): 48.40
- Overhang, Rear w/o bumper (in): 43.10
- Front Bumper to Back of Cab (in): 70.90
- Cab to Axle (in): 127.50
- Cab to End of Frame (in): 170.60
- Ground to Top of Load Floor (in): - TBD -
- Ground to Top of Frame (in): 31.10
- Frame Width, Rear (in): 33.50
- Ground Clearance, Front (in): 7.50
- Ground Clearance, Rear (in): 7.50
- Body Length Default Value (ft): - TBD -
- Passenger Capacity: 3
- Front Head Room (in): 38.40
- Front Leg Room (in): 29.50
- Front Shoulder Room (in): 70.70
- Front Hip Room (in): 67.70
- Vehicle Name: Chevrolet 4500HD LCF Diesel
- Body Style: Regular Cab Chassis Cab
- Driver Ratio: - TBD -
- Torque @ Clutch Engage (ft-lbs): - TBD -
- Torque Converter: 1.7639
- Static Loaded Radius (in): - TBD -
- Max Speed For Gradeability: - TBD -
